Next-level mixing for live sound, studio, worship, and broadcast.

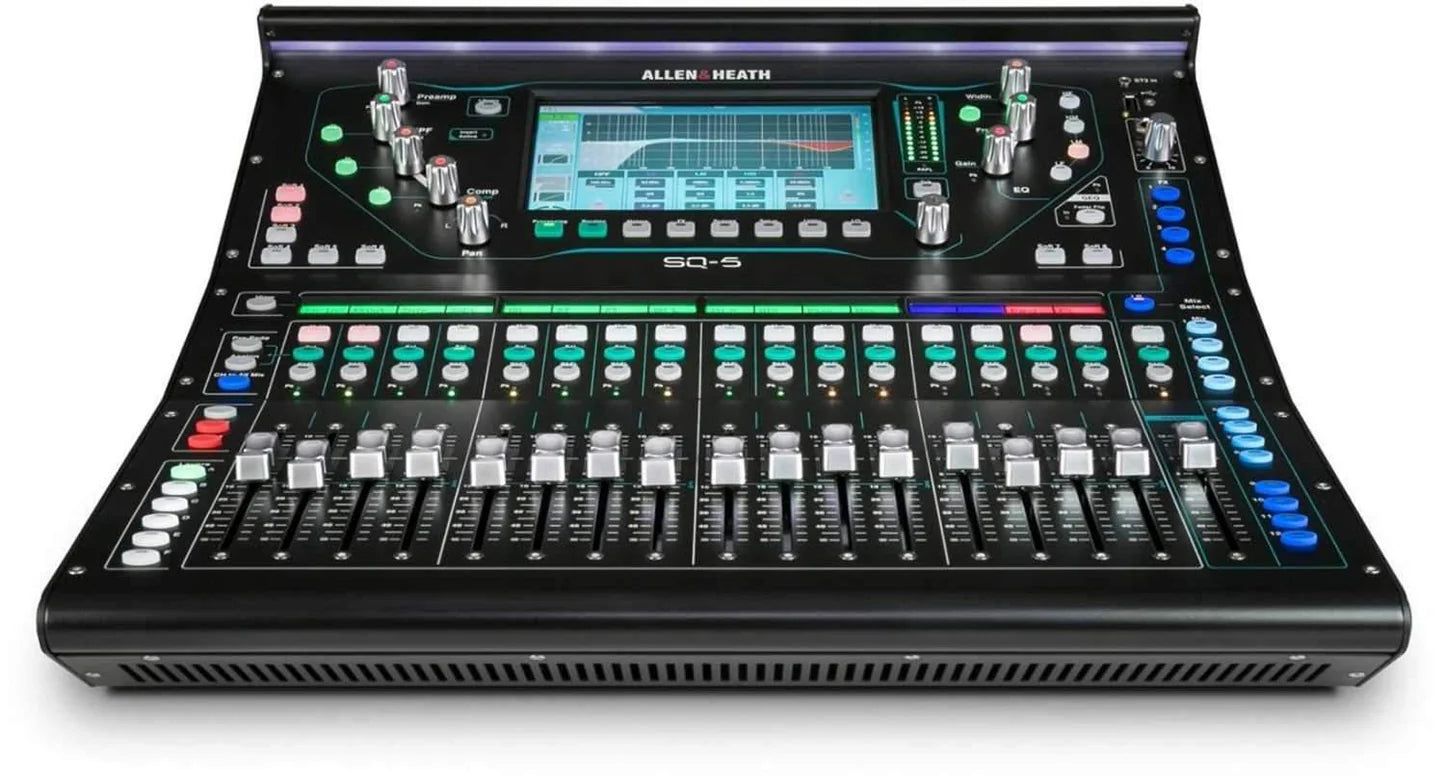

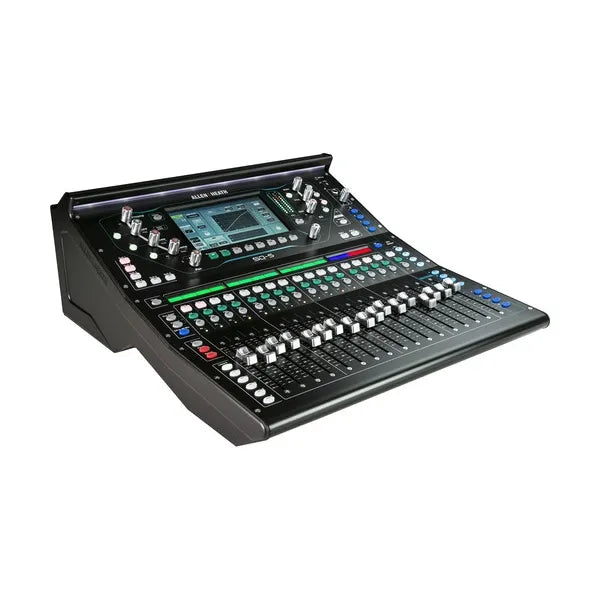

The Allen & Heath SQ-5 is a powerful 48-channel digital mixer built on the award-winning XCVI 96kHz FPGA audio engine. With world-class audio fidelity, ultra-low latency (<0.7ms), and intelligent workflow features, the SQ-5 is the ultimate tool for professional mixing environments.
Whether you're mixing front-of-house, monitors, or running a hybrid studio, the SQ-5 gives you the power and flexibility to manage complex setups with ease.
Key Features
48 input channels with pristine 96kHz processing
17 motorized faders with 6 customizable layers
12 stereo mixes plus LR main out – ideal for monitors and zones
Automatic Mic Mixing – perfect for multi-mic setups and speech
8 onboard FX engines with dedicated returns
7" full-color touchscreen with responsive interface
Built-in 32 x 32 USB interface for multitrack recording/playback
SQ-Drive direct-to-USB recording – no computer needed
SLink & I/O port for remote audio and network expansion
Apps for wireless mixing & personal monitor control
Rackmountable and road-ready (rack kit sold separately)
🎛 Ideal For
Live Sound Engineers
Church & Worship Audio Teams
Broadcast & Streaming Setups
Recording Studios & Portable Rigs
Educational Institutions & Theaters
App Support
SQ MixPad App: Remote control and offline editing (iOS, Android, macOS, Windows)
SQ4You App: Up to 8 performers can control their own monitor mixes (iOS/Android)
Specifications

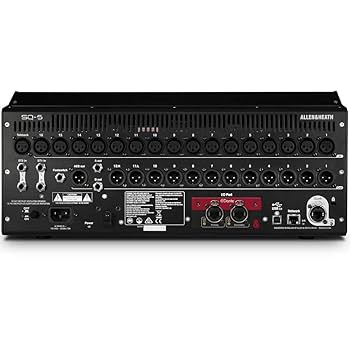

I/O: 16 mic/line inputs (XLR), 12 XLR outs, AES digital out, USB-A/B, network ports
USB Interface: 32x32 multitrack recording/playback
Expansion: SLink port, 64-channel I/O port, option card slot (Dante, Waves)
Effects: Delay, Reverb, Chorus, Flanger, Phaser
Processing: Parametric EQ, 28-band Graphic EQ, Dynamics, Inserts
Faders: 17 motorized 100mm
Screen: 7" Touchscreen
DAW Control: MIDI over USB
Form Factor: Rackmountable (kit sold separately), 23.1 lbs
Why Choose the A&H SQ-5?
This mixer combines studio-grade sound with live-ready durability. Its intuitive interface, powerful software ecosystem, and modular expandability make it a top-tier choice for professionals seeking reliability, performance, and future-proof flexibility.
