Description

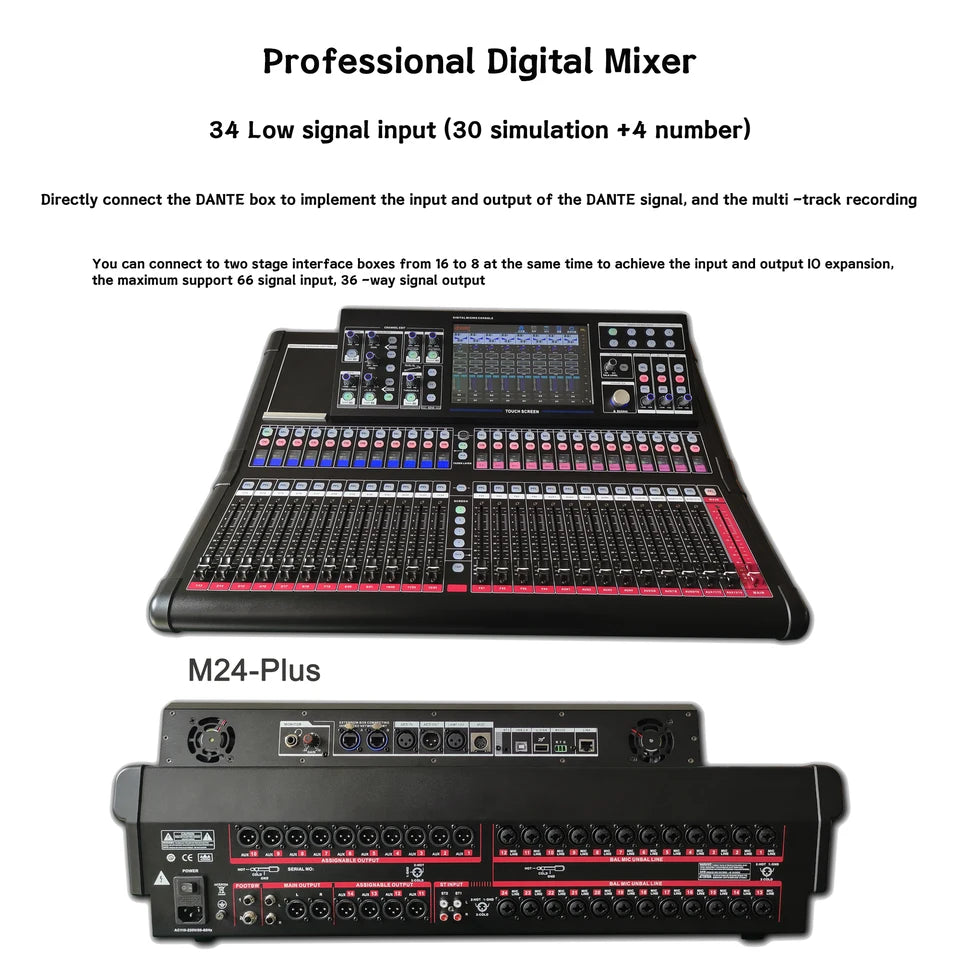

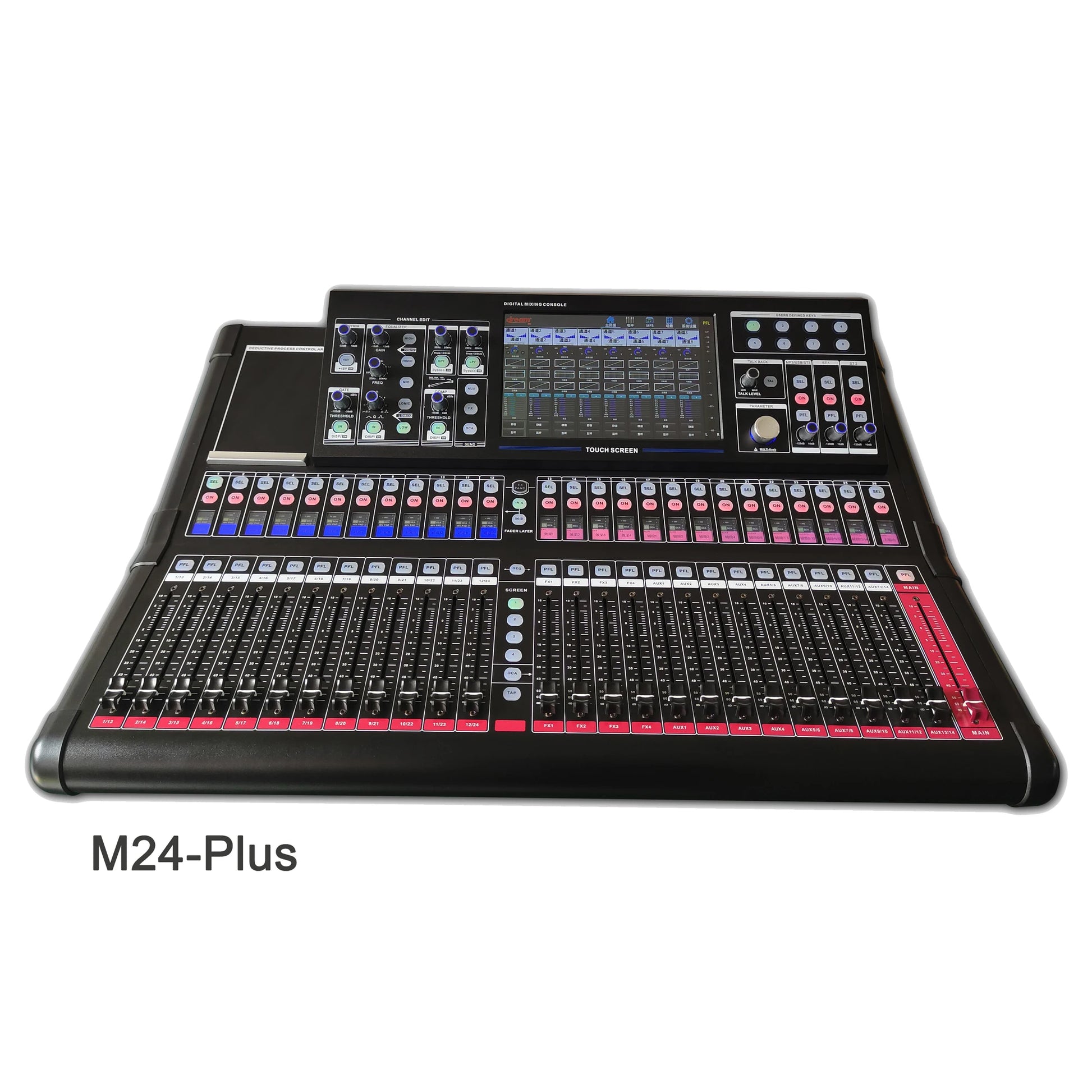

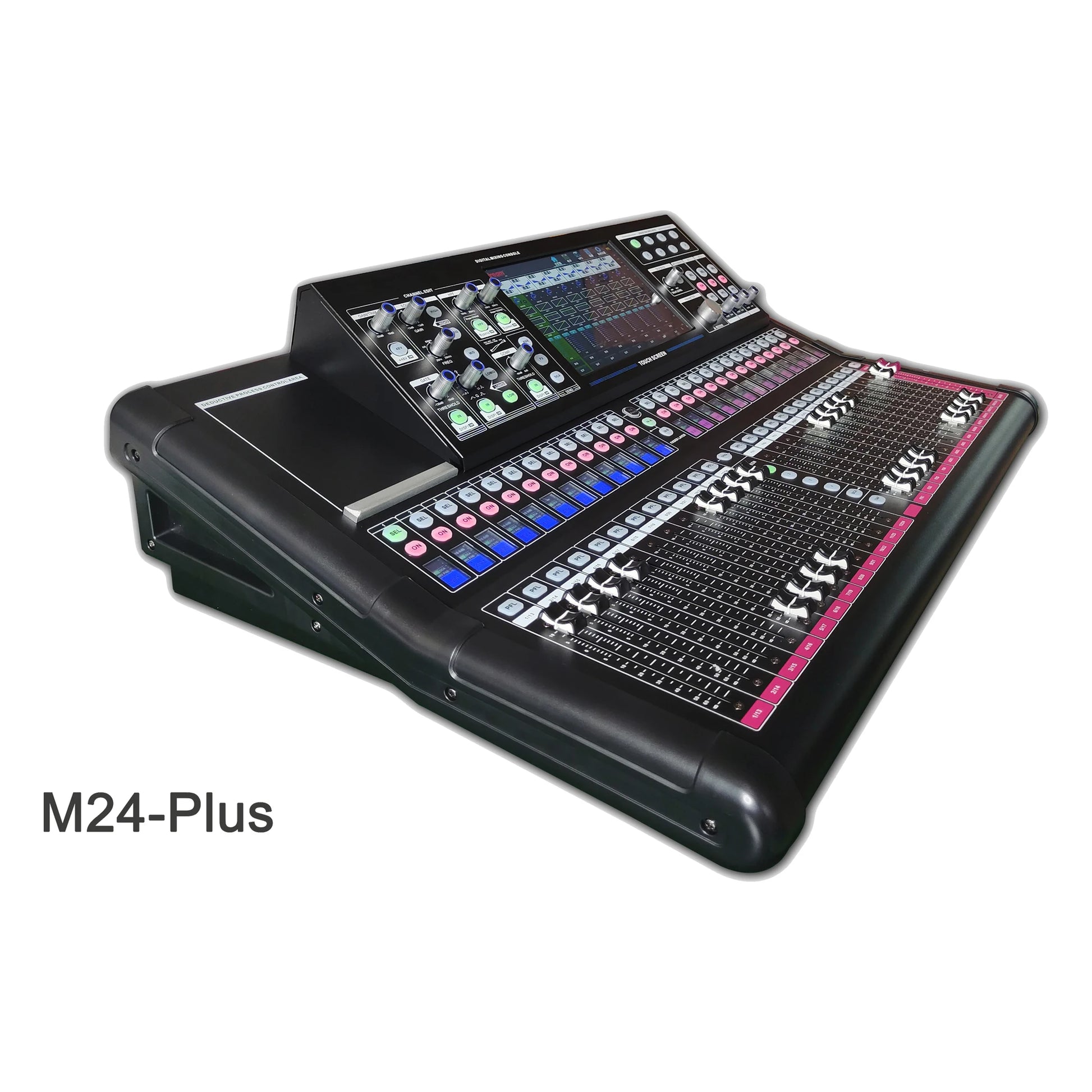

Take full control of your audio with the M24-plus Professional Digital Mixer, engineered for high-performance live sound, studio production, and broadcast environments. With up to 66 input channels and 36 output channels, this mixer delivers advanced signal routing, multi-format input compatibility, and Dante networking support, making it a powerful hub for any serious sound setup.
Key Features
Extensive Local I/O:
34 Signal Inputs:
24x MIC/LINE combo inputs
2x Stereo 3.5mm (RCA/Lotus) inputs
1x 3.5mm headphone input
1x Digital Input (USB sound card, MP3, AES digital)
20 Signal Outputs:
L/R Main Outputs
14x AUX outputs (AUX1–14)
Headphone monitoring output
AES digital output
Remote Signal Expansion:
Connect up to two 16-in / 8-out stage boxes simultaneously
Expandable to 66 inputs / 36 outputs
Dante-Enabled Connectivity:
Direct Dante interface support for real-time signal distribution and multi-track recording
Ideal for networked audio systems and complex venue installations
USB & Digital Streaming Capabilities:
ST3 Interface: USB audio stream, U-disk MP3 playback, AES input/output
Specifications
Model: M-24 Plus Professional Audio Mixer
Input Sensitivity: XLR: 1.5mV / TRS: 7mV
Analog Gain Range: -32dB to +10dB (0.6–0.7 dB steps)
Max Input Level: XLR: +19dBu / TRS: +29dBu
Dynamic Range: 112dB
Sampling Rate: 48kHz ±100PPM
Power: No built-in battery (external power required)
Certifications: CE Certified
Brand: Shenndare
Perfect For:
Live sound engineers, studios, touring professionals, event production teams, and installations that demand a powerful, flexible, and scalable mixing solution.
